suitable for demolition sites, metallurgical iron and steel enterprises, mining areas, coal chemical enterprises, cement plants, power plants, construction sites, materials and minerals. , sand factories, dry material warehouses, open-air blasting, and heavy dust areas.
Email: [email protected]

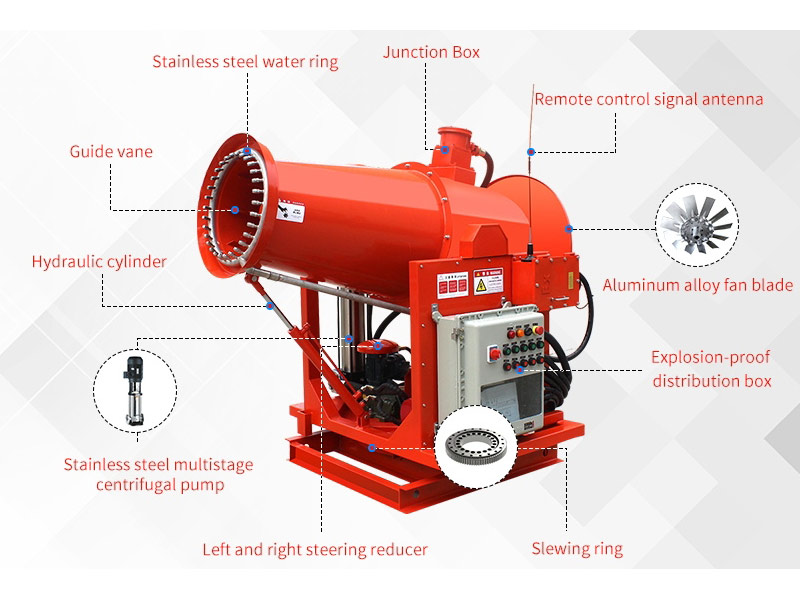

The water mist sprayed by the fog cannon machine is micron-level water mist, which is produced by water and air passing through a special micron-level spray unit under different pressure and flow control. The fog cannon makes the mist particles of the micron-level spray repel each other and Standalone, improves binding to dust. The fog cannon machine is based on the principle of air delivery, first uses imported high-pressure pumps and fine atomizing nozzles to atomize water, and then uses the air volume and wind pressure of the fan to send the atomized water mist to a longer distance, so that the water mist can reach a longer distance At the same time, a larger area can be covered, and the water mist and dust will condense and land, so as to achieve the purpose of dust reduction.
Construction sites Coal yards, mines, material yards, wharf industrial dust removal, agriculture, land
| Model | Quiet Wind Range (m) | Water mist particle diameter (μm) | Coverage area (㎡) | Power (kw) | Pitch angle | Rotation angle | Number of nozzles | Noise at 20 meters (dB) | Weight (kg) |
| ZT-20 | 20 | 30-150 | ≤1900 | ≤3 | -5~35° | 0~340° | 12 | ≤60 | 260 |
| ZT-30 | 30 | 30-150 | ≤2700 | ≤5 | -5~35° | 0~340° | 12 | ≤65 | 290 |
| ZT-40 | 40 | 30-150 | ≤4800 | ≤13 | -5~35° | 0~340° | 24 | ≤68 | 440 |
| ZT-50 | 50 | 30-150 | ≤7600 | ≤16 | -5~35° | 0~340° | 24 | ≤68 | 530 |
| ZT-60 | 60 | 30-150 | ≤10900 | ≤21 | -5~35° | 0~340° | 30 | ≤75 | 640 |
| ZT-70 | 70 | 30-150 | ≤14900 | ≤30 | -5~35° | 0~340° | 36 | ≤75 | 850 |
| ZT-80 | 80 | 30-150 | ≤19500 | ≤37 | -5~35° | 0~340° | 46 | ≤80 | 960 |
| ZT-90 | 90 | 30-150 | ≤24700 | ≤46 | -5~35° | 0~340° | 70 | ≤80 | 1580 |
| ZT-100 | 100 | 30-150 | ≤30500 | ≤55 | -5~35° | 0~340° | 70 | ≤80 | 1610 |
| ZT-110 | 110 | 30-150 | ≤36900 | ≤68 | -5~35° | 0~340° | 100 | ≤80 | 1850 |
| ZT-120 | 120 | 30-150 | ≤43900 | ≤92 | -5~35° | 0~340° | 110 | ≤85 | 2350 |
| ZT-140 | 140 | 30-150 | ≤59800 | ≤96 | -5~35° | 0~340° | 120 | ≤90 | 2850 |
Note: The above parameters are for reference only, and the actual product shall prevail.
If the above requirements cannot meet your needs, our company can customize it according to your requirements.
