The fog cannon is widely used in scenes such as farmland, forest farms, orchards, and botanical gardens.
Email: [email protected]

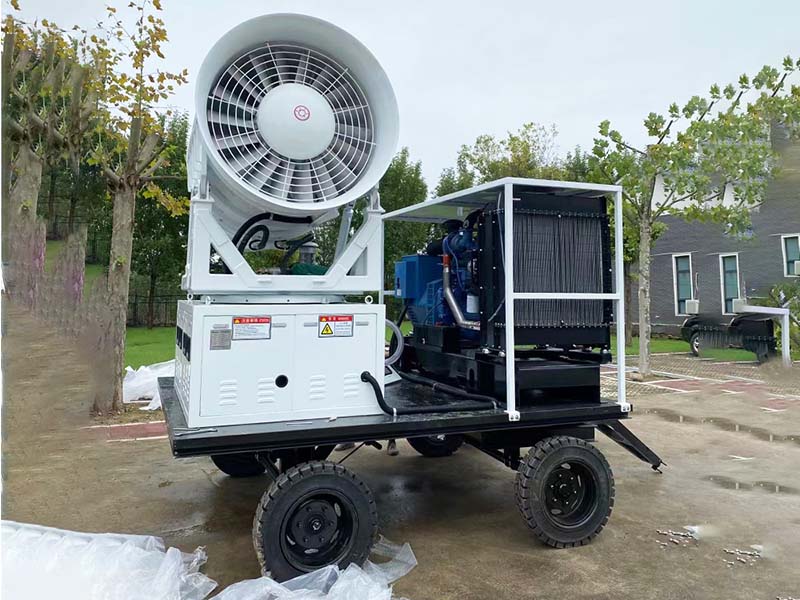

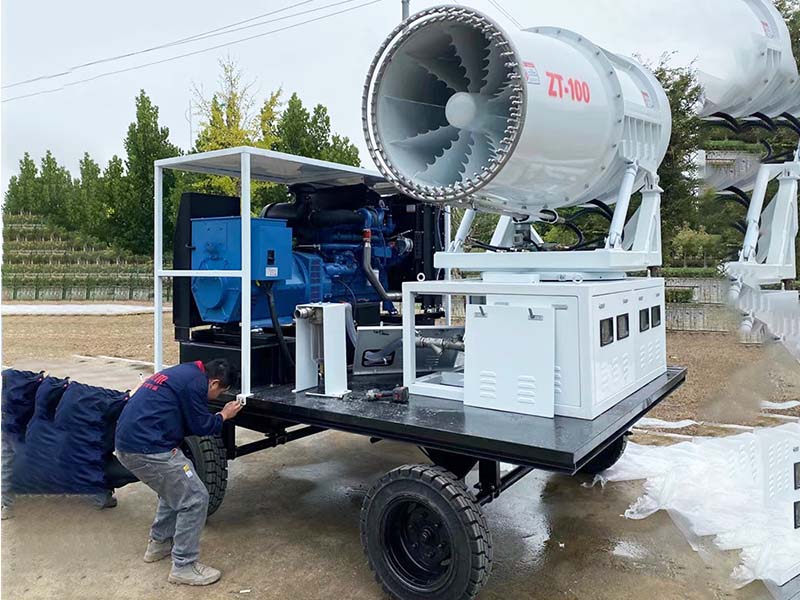

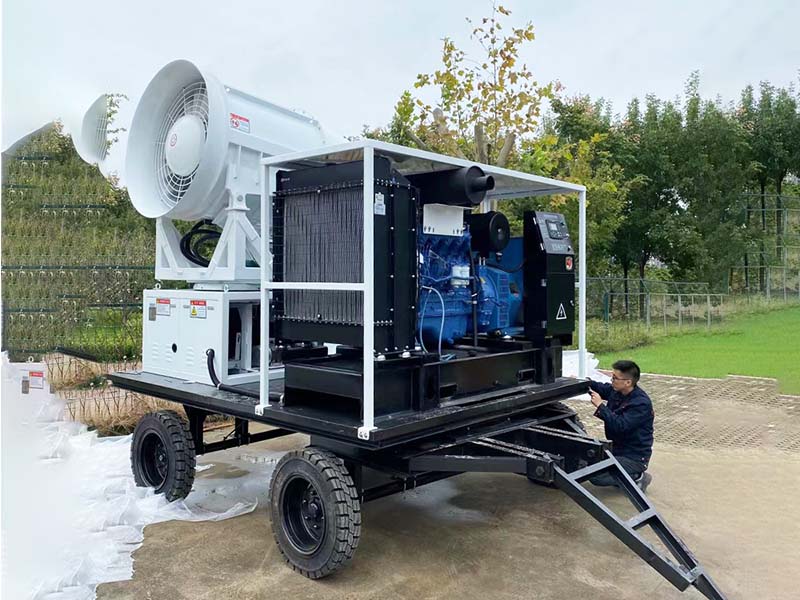

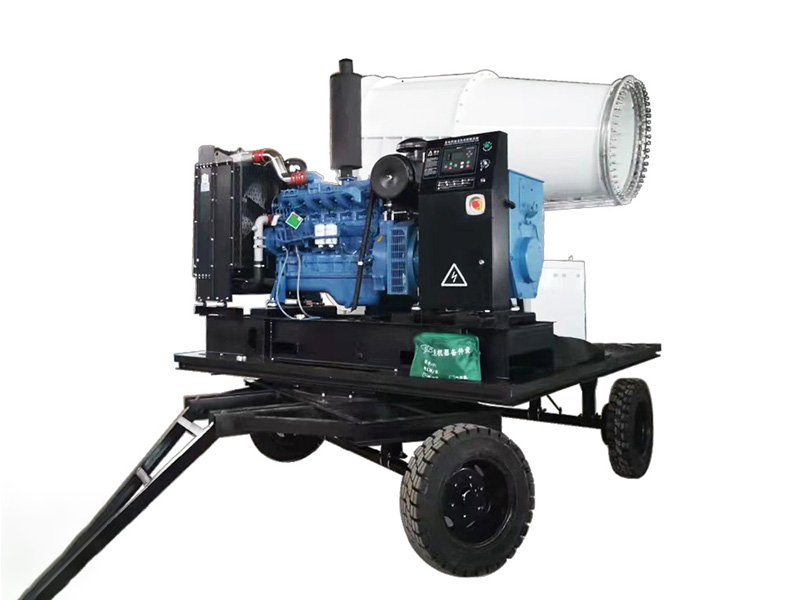

The mobile dust and mist monitor machine produced by our company has greatly enhanced the convenience of equipment movement by improving the design process of the mist monitor equipment and adding a trailer frame. It has the characteristics of good mobility and convenient use. The application of heat tracing and insulation systems ensures the reliability of equipment operation in low-temperature environments, greatly extending the usage scenarios of the equipment.
The highly integrated box contains important components such as a generator, water tank, water pump, and control system, which can be externally mounted on the carrier frame of most vehicles. The explosion-proof solid tires greatly enhance the convenience of equipment transfer; The fog cannon is widely used in scenes such as farmland, forest farms, orchards, and botanical gardens.
| Model | Quiet Wind Range (m) | Water mist particle diameter (μm) | Coverage area (㎡) | Power (kw) | Pitch angle | Rotation angle | Number of nozzles | Noise at 20 meters (dB) | Weight (kg) |
| ZT-20 | 20 | 30-150 | ≤1900 | ≤3 | -5~35° | 0~340° | 12 | ≤60 | 260 |
| ZT-30 | 30 | 30-150 | ≤2700 | ≤5 | -5~35° | 0~340° | 12 | ≤65 | 290 |
| ZT-40 | 40 | 30-150 | ≤4800 | ≤13 | -5~35° | 0~340° | 24 | ≤68 | 440 |
| ZT-50 | 50 | 30-150 | ≤7600 | ≤16 | -5~35° | 0~340° | 24 | ≤68 | 530 |
| ZT-60 | 60 | 30-150 | ≤10900 | ≤21 | -5~35° | 0~340° | 30 | ≤75 | 640 |
| ZT-70 | 70 | 30-150 | ≤14900 | ≤30 | -5~35° | 0~340° | 36 | ≤75 | 850 |
| ZT-80 | 80 | 30-150 | ≤19500 | ≤37 | -5~35° | 0~340° | 46 | ≤80 | 960 |
| ZT-90 | 90 | 30-150 | ≤24700 | ≤46 | -5~35° | 0~340° | 70 | ≤80 | 1580 |
| ZT-100 | 100 | 30-150 | ≤30500 | ≤55 | -5~35° | 0~340° | 70 | ≤80 | 1610 |
| ZT-110 | 110 | 30-150 | ≤36900 | ≤68 | -5~35° | 0~340° | 100 | ≤80 | 1850 |
| ZT-120 | 120 | 30-150 | ≤43900 | ≤92 | -5~35° | 0~340° | 110 | ≤85 | 2350 |
| ZT-140 | 140 | 30-150 | ≤59800 | ≤96 | -5~35° | 0~340° | 120 | ≤90 | 2850 |
Note: The above parameters are for reference only, and the actual product shall prevail.
If the above requirements cannot meet your needs, our company can customize it according to your requirements.
