Construction sites, coal yards, power plants, coking plants, steel mills, industrial dust removal and suppression, etc; Agriculture, landscaping, airports, highways, stations, docks, public places, sports venues, hot venues, and other epidemic prevention, disinfection, moisturizing, and cooling measures.
Email: [email protected]
The mobile dust and mist monitor machine produced by our company has greatly enhanced the convenience of equipment movement by improving the design process of the mist monitor equipment and adding a trailer frame. It has the characteristics of good mobility and convenient use. The application of heat tracing and insulation systems ensures the reliability of equipment operation in low-temperature environments, greatly extending the usage scenarios of the equipment.
This kind of fog cannon can be externally attached to various vehicles for spray operation, which is not only suitable for local cooling of factory buildings, warehouses, workshops and dust control of construction sites, sand fields, mines, etc., but also for large-scale liquid medicine spraying operations in agriculture, forestry, animal husbandry, disinfection and sterilization, etc.

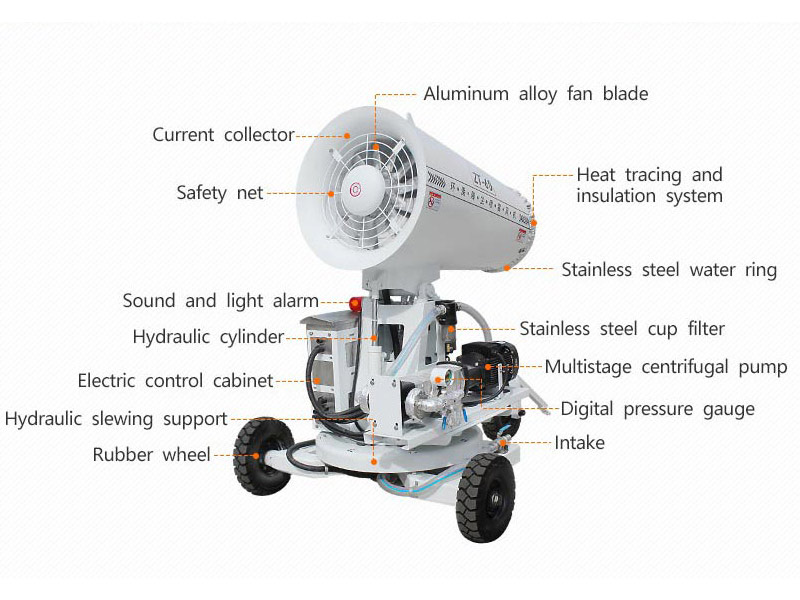

The mobile dust and mist gun machine has the characteristics of good maneuverability and convenient use. The body is made of all aluminum material, with a compact and lightweight structure. Adopting stainless steel multi-stage centrifugal pump and double water ring design, the mist volume is larger and the coverage is wide. The application of heat tracing and insulation systems ensures the reliability of equipment operation in low-temperature environments, greatly extending the usage scenarios of the equipment.
Construction sites, coal yards, power plants, coking plants, steel mills, industrial dust removal and suppression, etc; Agriculture, landscaping, airports, highways, stations, docks, public places, sports venues, hot venues, and other epidemic prevention, disinfection, moisturizing, and cooling measures.
| Model | Quiet Wind Range (m) | Water mist particle diameter (μm) | Coverage area (㎡) | Power (kw) | Pitch angle | Rotation angle | Number of nozzles | Noise at 20 meters (dB) | Weight (kg) |
| ZT-20 | 20 | 30-150 | ≤1900 | ≤3 | -5~35° | 0~340° | 12 | ≤60 | 260 |
| ZT-30 | 30 | 30-150 | ≤2700 | ≤5 | -5~35° | 0~340° | 12 | ≤65 | 290 |
| ZT-40 | 40 | 30-150 | ≤4800 | ≤13 | -5~35° | 0~340° | 24 | ≤68 | 440 |
| ZT-50 | 50 | 30-150 | ≤7600 | ≤16 | -5~35° | 0~340° | 24 | ≤68 | 530 |
| ZT-60 | 60 | 30-150 | ≤10900 | ≤21 | -5~35° | 0~340° | 30 | ≤75 | 640 |
| ZT-70 | 70 | 30-150 | ≤14900 | ≤30 | -5~35° | 0~340° | 36 | ≤75 | 850 |
| ZT-80 | 80 | 30-150 | ≤19500 | ≤37 | -5~35° | 0~340° | 46 | ≤80 | 960 |
| ZT-90 | 90 | 30-150 | ≤24700 | ≤46 | -5~35° | 0~340° | 70 | ≤80 | 1580 |
| ZT-100 | 100 | 30-150 | ≤30500 | ≤55 | -5~35° | 0~340° | 70 | ≤80 | 1610 |
| ZT-110 | 110 | 30-150 | ≤36900 | ≤68 | -5~35° | 0~340° | 100 | ≤80 | 1850 |
| ZT-120 | 120 | 30-150 | ≤43900 | ≤92 | -5~35° | 0~340° | 110 | ≤85 | 2350 |
| ZT-140 | 140 | 30-150 | ≤59800 | ≤96 | -5~35° | 0~340° | 120 | ≤90 | 2850 |
Note: The above parameters are for reference only, and the actual product shall prevail.
If the above requirements cannot meet your needs, our company can customize it according to your requirements.
