Fog Cannon Machine—How to Quickly Spray Pesticides in a 10,000-Square-Meter Orchard?

Fog Cannon Machine—How to Quickly Spray Pesticides in a 10,000-Square-Meter Orchard?

For a 10,000-square-meter orchard (about 15 mu), traditional spraying requires 3-4 people to work with backpack sprayers for 2-3 days. This not only incurs high labor costs and severe chemical waste but also suffers from uneven spraying and missed spraying on the back of leaves. However, the mist cannon machine, with its core advantages of wide coverage and fine atomization, has become a “new tool” for efficient orchard spraying, completely changing the traditional operation mode.​

1. Choose the Right Adapted Model, Double Spraying Efficiency​

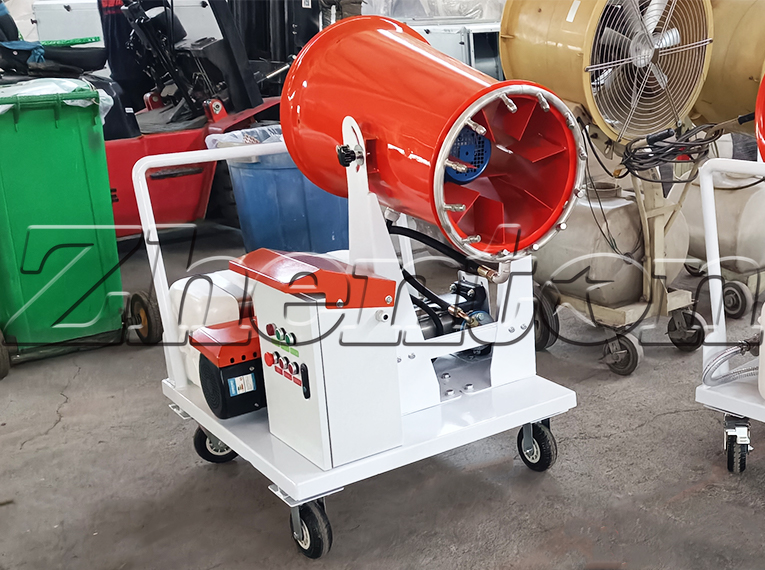

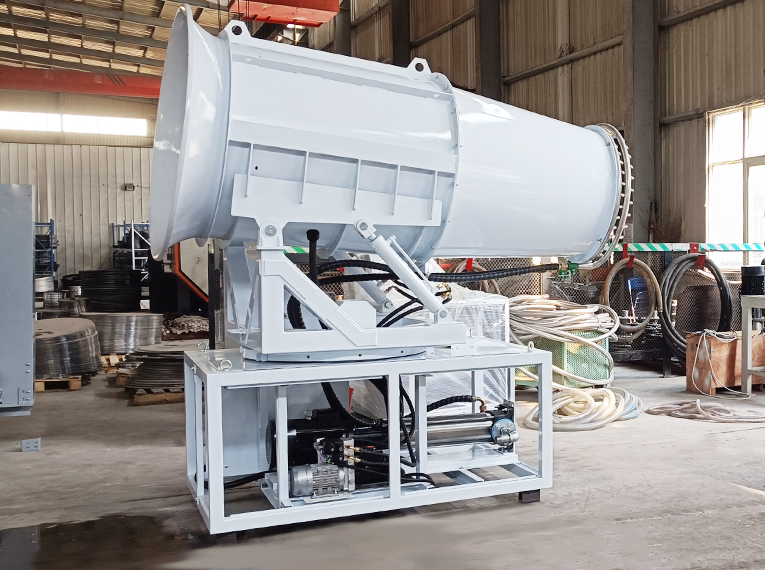

For the planting density and row spacing (conventional fruit tree row spacing of 3-4 meters) of 10,000㎡ orchards, two types of mist cannon machines are recommended: First, the three-wheel trailer-mounted mist cannon machine (range 20-30 meters). Equipped with a hydraulic lifting rod (max lifting to 3 meters), it can flexibly adjust the spraying height, suitable for medium and tall fruit trees such as apple and peach trees. It can be moved by a single person and complete spraying the entire orchard in one day. Second, the fixed mist cannon machine (range 30-40 meters). It can be installed at the high point in the center of the orchard, covering the entire orchard with 360° rotating spraying. Equipped with a remote control device, no on-site manual 值守 is needed, and the operation can be completed 2-3 hours after starting up. Both types support traction connection with orchard tractors, adapting to orchard plots of different terrains.​

2. Three Core Advantages, Solving Orchard Spraying Pain Points

3. 1.Fine and Uniform Atomization, More Thorough Pest and Disease Control​

The mist cannon machine atomizes the pesticide into ultra-fine mist particles of 50-150μm through a high-pressure piston pump. The adhesion of the mist particles is 50% higher than that of traditional sprayers. They can evenly attach to the front and back of leaves and fruit gaps with the air flow, avoiding the problem of “thorough spraying on the front but missed spraying on the back”. For hidden pests such as aphids and red spiders, the fine mist can penetrate deep into the back of leaves and flower buds, improving the control effect by more than 40% compared with traditional spraying and reducing the frequency of supplementary spraying.​

2. Pesticide and Labor Saving, Cutting Comprehensive Costs by Half​

Traditional sprayers require 80-100 liters of pesticide per mu of orchard. Due to high atomization efficiency, the mist cannon machine only needs 50-60 liters per mu. A single spraying for a 10,000㎡ orchard can save 300-400 liters of pesticide. In terms of labor, traditional spraying requires 4 people for 2 days, costing about 1,600 yuan, while the mist cannon machine can be completed by one person in one day, reducing labor costs to less than 400 yuan. In long-term use, it can save more than 10,000 yuan in pesticide and labor costs annually.​

3. Flexible Adaptation to Terrain, Easily Handling Complex Orchards​

For complex terrains such as mountainous orchards and terraced orchards, traditional sprayers are difficult to carry. However, the three-wheel trailer-mounted mist cannon machine is equipped with anti-slip tires, with a climbing capacity of 15°, and can flexibly shuttle along orchard operation roads. The fixed mist cannon machine adjusts the spraying angle (-10°~40°) to cover both low-lying and high fruit trees, avoiding spraying blind spots caused by terrain undulations.​

3. Scientific Operation Skills for Better Spraying Effect​

Pesticide Ratio: The mist cannon machine has high atomization efficiency, so the pesticide concentration needs to be appropriately reduced (diluted by 10%-15% compared with traditional sprayers) to avoid phytotoxicity caused by excessive concentration.​

Operation Timing: Choose early morning or evening with no wind or light wind (wind speed ≤ level 3) for operation to reduce mist particle drift and improve adhesion rate.​

Accessory Selection: Matching fan-shaped nozzles can enhance coverage of the top of the tree crown, and using anti-drip valves can prevent pesticide from dripping on fruits and causing pollution when the machine is shut down.​

4. Real Grower Case: Spraying Transformation in a 15-Mu Apple Orchard​

Mr. Li, a Spanish grower with a 15-mu apple orchard, used to need 4 people for 2 days to finish spraying, with high labor costs and annual aphid prevention gaps. After introducing the three-wheel trailer-mounted mist cannon machine in 2024, he completed the entire orchard spraying by himself in one day, reduced pesticide usage by 30%, cut the apple pest and disease incidence from 25% to 8%, and increased the high-quality fruit rate by 15%. He recovered the equipment investment cost in only half a year.​

The core needs of 10,000㎡ orchard spraying are “efficiency, uniformity, and low cost”. Through precise adaptation to orchard scenarios, the mist cannon machine transforms traditional “labor-intensive” operations into “mechanized and efficient” ones. Whether it is large-scale spraying in plain orchards or complex operations in mountainous orchards, the mist cannon machine, with its strong coverage and atomization effect, has become a “good helper” for growers to improve quality and increase income.​
